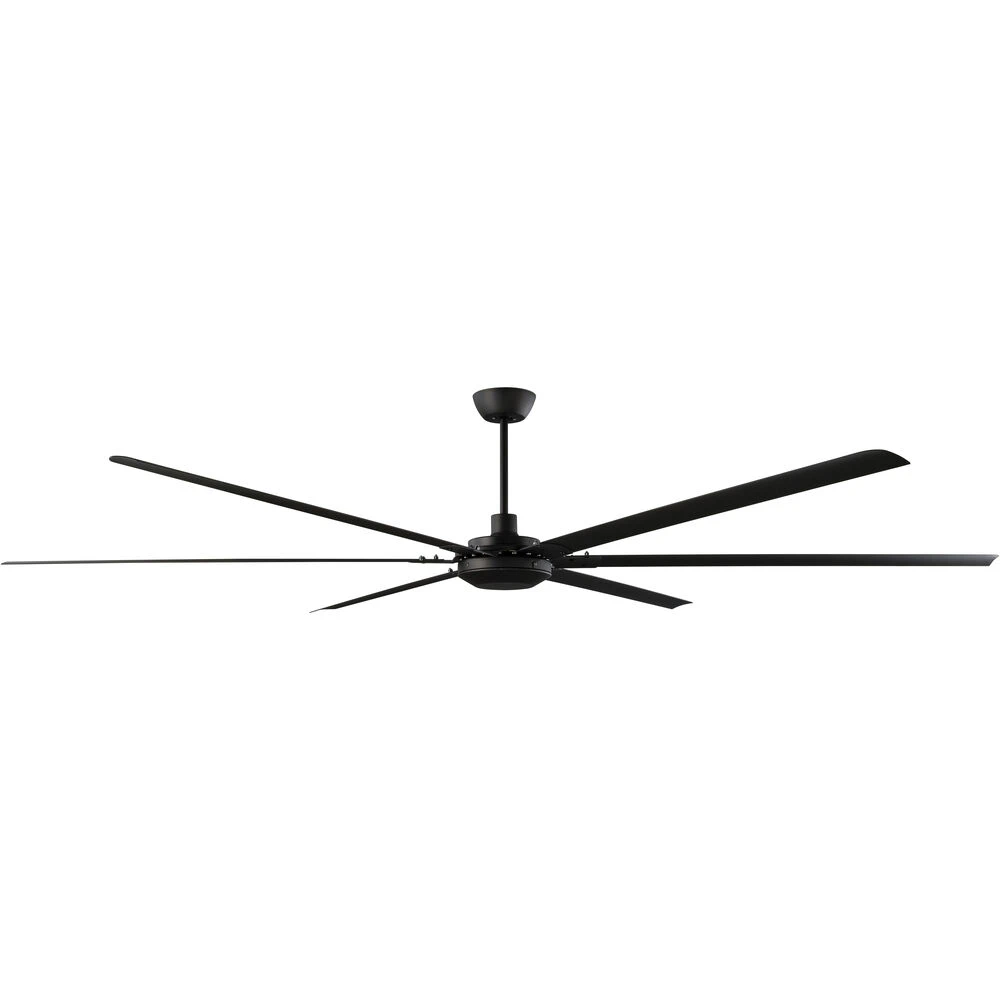

Be swept away by this Windswept series, Craftmade’s newest entry into the High Volume Low Speed large fan category (HVLS). Choose Brushed Polished Nickel or Espresso finishes in 78”, 102” and 120” diameters. The Windswept fan is where modern style and superior airflow come together – both indoors and out.
Brand
Craftmade
Category
Outdoor Fans
Collection
Windswept
Finish
Various
Color
Browns
Product Information
Brand:
Craftmade
Brand Category:
Indoor/Outdoor Ceiling Fan
Shipping Method:
Ground
SKU:
WND102ESP6
UPC:
647881187576
Electrical and Operational Information
Efficiency:
234.75
Lamping Included:
Bulbs Not Included
Lead Wire Length:
84.00
Voltage:
120
Dimensions and Measurements
Backplate/Canopy Extension:
2.36
Backplate/Canopy Height:
6.61
Backplate/Canopy Width:
6.61
Diameter:
102
Weight:
39.68
Width:
102
Fan Blade Information
Fan Blade Pitch:
8
Fan Blade Span:
102
Number of Fan Blades:
6
Fan Operational Information
Fan Features:
- Blade Status: Included / Blade Sweep Options: 102 / Blade Type: Fits Only / Reversible Blades: No / Blade Material: Aluminum / Blade Length: 45.19 / Blade Width: 4.33 / Blade Features: Blades Included
- Motor Type: DC / Motor Speeds: 6 / Reverse Method: Remote / Motor Diameter: 165 / Motor Height: 15 / Motor size combined: 165×15 / Motor Material: Silicon Steel / Housing Size: 10 / Housing Height: 7.3
- RPM 1: 103 / RPM 2: 86 / RPM 3: 69
- AMPS (Hi Speed): 1.33
- Light Kit Adaptable: Yes / Light kit options: WNDLK-ESP-LED (Sold Separately) / Blank Light Lens Cover: No
- Control Status: Included / Control Types Included: Remote Control Wall Control / Control features: IDC2 Remote and Wall Controls / Control Type: Wall (2) and Clamshell
- Reverse Location: Receiver
Motor Wattage:
95.3
Unit Air Flow:
22372
Included Components
Light Kit Included:
No
Warranty and Specifications
Country of Origin:
China
Prop 65:
Yes
UL Ratings:
cULus Damp
Warranty:
Limited Lifetime
Additional Details
Chain Cord Features:
1x12in Downrods
Features:
- Downrod Diameter: 0.5
- Glass/Shade Included: No
- Energy Saving, 6-Speed Reversible DC Motor
- Mounting Location: Damp / Mounting Method: Dual Mount (Flat or Angled Ceiling) / Slope Mount: Yes / Up Down Mount Capabilty: No
- 12″ Downrod (Included)
- 102″ Windswept Blades in Espresso (Included)Matching Light Kit Item : WNDLK-ESP-LEDIDC2 Remote and Wall Controls IncludedBlades Must be Mounted at Least 10′ Above the Floor for SafetySuitable for Damp Locations
- Dual Mount (Flat or Angled Ceiling)
- Limited Lifetime Warranty
- Product Height (Primary Downrod): 19.4Blade to ceiling Height (Primary Downrod): 14.83
- Room Size: Great rooms (larger than 18 X 20)
Material:
Aluminum/Steel/Silicon Steel
Switch Features:
Remote
